PC-3000

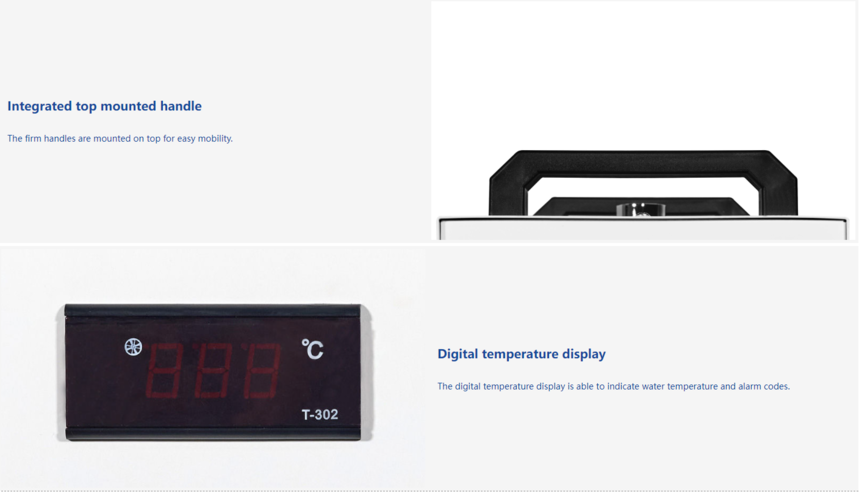

PC-3000 integrates top mount handle for easy portability. The digital temperature display can indicate temperature and alarm codes. With excellent heat dissipation capability, cost-effective price, small size and lightweight.

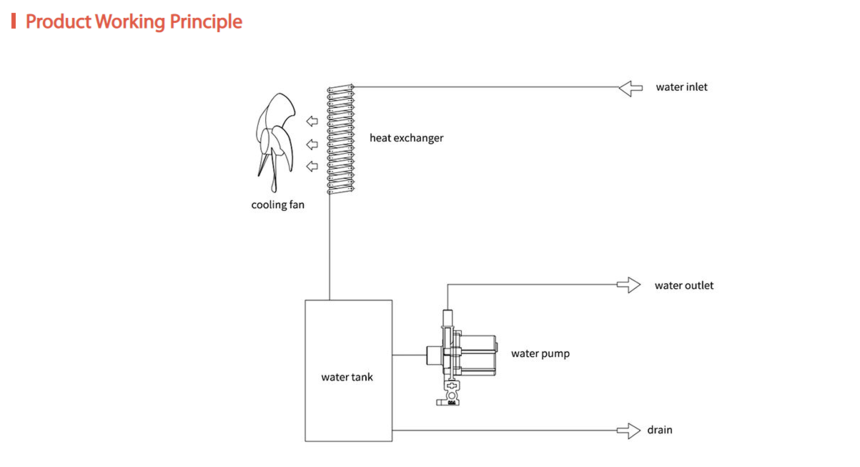

PC-3000 is a basic passive cooling solution. Featuring the heat dissipation capacity of 50W/℃ and a 9L reservoir, this small recirculating chiller can radiate the heat very effectively. Designed with high speed fan inside without compressor to reach heat exchange in a simple structure with high reliability.

And PC-3000 is a perfect solution to enhance the performance of 1500W CNC cutting machine spindle. Being affordable and easy to operate, this passive cooling chiller can dissipate the heat from the spindle effectively while at the same time consuming less energy than its counterparts. Also suitable for ≤80W CO2 laser engraver powered by DC glass tube.

Collect

Product Parameters

Model	PC-3000TGTY	PC-3000DGTY	PC-3000TKTY	PC-3000DKTY
Voltage	AC 1P 220~240V	AC 1P 110V	AC 1P 220~240V	AC 1P 110V
Frequency	50/60Hz	60Hz	50/60Hz	60Hz
Current	0.4~0.7A	0.4~0.9A	0.3~0.6A	0.3~0.8A
Max. power consumption	0.07kW		0.11kW
Radiating capacity	50W/℃
Max. pump pressure	1bar		7bar
Max. pump flow	10L/min		2L/min
Protection	Flow alarm
Tank capacity	9L
Inlet and outlet	OD 10mm Barbed connector		8mm Fast connector
N.W.	9Kg		11Kg
G.W.	11Kg		13Kg
Dimension	49X27X38cm (L X W X H)
Package dimension	55X34X43cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

Heat dissipation capacity: 50W/℃, meaning it can absorb 50W of heat by rising 1°C of water temperature;

* Passive cooling, no refrigerant

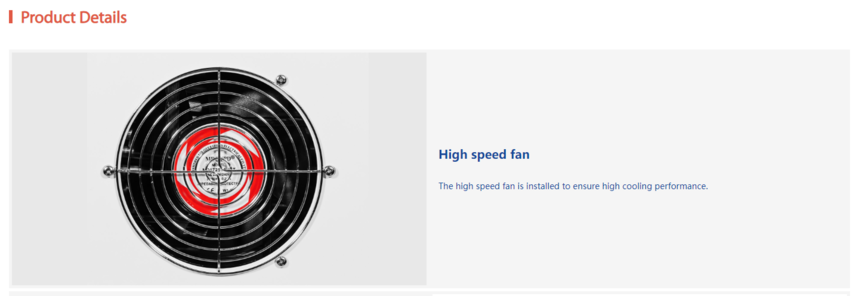

* High speed fan

* 9L reservoir

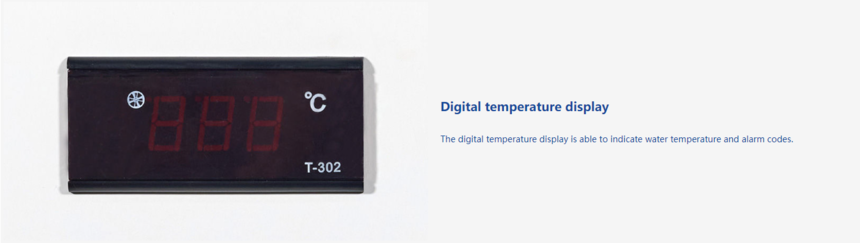

* Digital temperature display

* Built-in alarm functions

* Easy operation and space-saving

* Low energy and environmental
