Product Detail

PC-8000

PC-8000 ensures precise temperature control in analytical, industrial, medical and laboratory applications. It cools in a temperature range of 5°C to 35 °C and achieves stability of ±1°C. With a robust design, this air cooled fluid cooler ensures continuous and reliable operation. The digital control panel is easy to read and provides multiple alarms and safety functions.

PC-8000 industrial water chiller is equipped with high-performance compressor and efficient evaporator to achieve high energy efficiency, so the operating cost can be significantly reduced. Thanks to the support of Modbus485 communication, this recirculating water chiller is available for remote operation - monitoring the working status and modifying the parameters of the chiller.

Collect
Product Parameters

Model

PC-8000EN

PC-8000FN

Voltage

AC 3P 380V

AC 3P 380V

Frequency

50Hz

60Hz

Current

6.4~40.1A

8.4~42A

Max. power consumption

21.36kW

22kW


Compressor power

12.16kW

13.3kW

16.3HP

17.8HP



Nominal cooling capacity

143304Btu/h

42kW

36111Kcal/h

Refrigerant

R-410a

Precision

±1℃

Reducer

Capillary

Pump power

2.2kW

3kW

Tank capacity

210L

Inlet and outlet

Rp1-1/2"

Max. pump pressure

7.5bar

5.5bar

Max. pump flow

200L/min

N.W.

460Kg

G.W.

536Kg

Dimension

190 X108 X 140cm (L X W X H)

Package dimension

202 X 123 X 161cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features
Product Features

* Cooling Capacity: 42000W

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

* Intelligent temperature controller

* Multiple alarm functions

* High reliability, energy efficiency and durability

* Easy maintenance and mobility

* Available in 380V, 415V or 460V


Application

* Laboratory equipment (rotary evaporator, vacuum system)

* Analytical equipment (spectrometer, bio analyzes, water sampler)

* Medical diagnostic equipment(MRI, X-ray)

* Plastic molding machines

* Printing machine

* Furnace

* Welding machine

* Packaging machinery

* Plasma etching machine

* UV curing machine

* Gas generators

Product Details

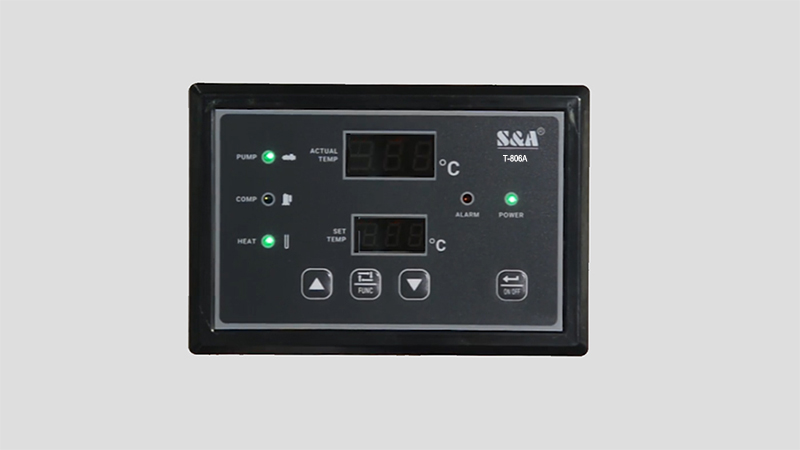

41kW Large Cooling Capacity Industrial Water Chiller CW-8000 Intelligent Temperature Controller


Intelligent temperature controller


The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

41kW Large Cooling Capacity Industrial Water Chiller CW-8000 Easy-to-read Water Level Indicator


Easy-to-read water level indicator


The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

41kW Large Cooling Capacity Industrial Water Chiller CW-8000 Junction Box

                                        Waterproof Junction Box


S&A engineers' professional design. Safe and stable, flexible power cable installation.

Ventilation Distance


41kW Large Cooling Capacity Industrial Water Chiller CW-8000 Ventilation Distance

Product Working Principle


41kW Large Cooling Capacity Industrial Water Chiller CW-8000 Product Working Principle
